Parts Processing

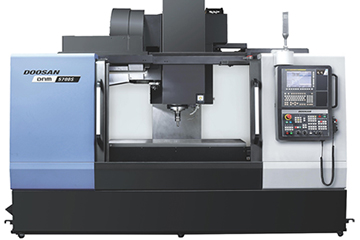

  • DNM 5700
    • Table Length 1,300mm
    • Table Width 570mm
    • Allowable Load 1,000kg
    • Travel Distance X Axis 1,050mm / Y Axis 570mm / Z Axis 510mm

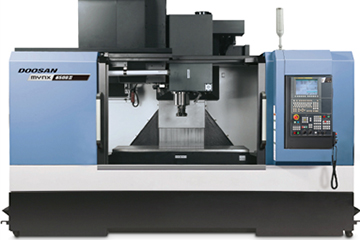

  • Mynx 6500
    • Table Length 1,400mm
    • Table Width 670mm
    • Allowable Load 1,300kg
    • Travel Distance X Axis 1,270mm / Y Axis 670mm / Z Axis 625mm

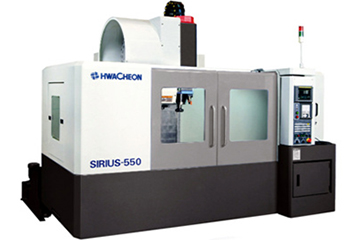

  • HWACHEON SIRIUS 550
    • Table Length 1,300mm
    • Table Width 550mm
    • Allowable Load 800kg
    • Travel Distance X Axis 1,150mm / Y Axis 550mm / Z Axis 550mm

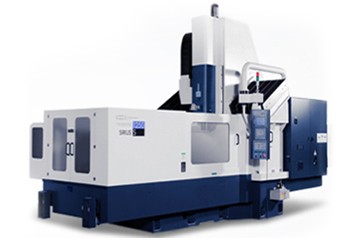

  • HWACHEON SIRIUS 1250
    • Table Length 2,800mm
    • Table Width 1,250mm
    • Allowable Load 5,000kg
    • Travel Distance X Axis 2,500mm / Y Axis 1,250mm / Z Axis 750mm
Other Products
  • 3D Vision Inspection on Copper Plate Surface
    • 3D vision inspection, grading, and sorting on status
      of copper plate surface
    • Line Laser / 3D camera → high-speed scanning
    • Simultaneous inspection on front/back part
    • Robot system and optical driving reduction robot system
  • Automobile Glass Mirror Base / Rain Sensor Align Inspection
    • Enhance productivity with integrated rain sensor and mirror base inspection process
    • Reduces inspection time by reading whole R/S, M/B Palette parts at the same time
  • Automobile Side Glass Position Inspection
  • Automated System for Vacuum Exhaustion Process
    • 6-axis vertical articulated robot and precision-control automation (Align, Loading & Unloading, and Tip Inspection)
    • Automation of automatic tip cutting burner unit (4-axis, 6-axis)
    • Multi-system (Tipoff/Tipout)
  • LCD Assembly Process (TFT/BLU Sealing Equipment) Vision Align System
    • Vision inspection on TFT LCD Pre-Align & send position correction data for robot pickup
    • TFT / BLU sealing align vision system (Area camera 4 & coaxial lighting)
    • Servo for moving camera by each inch
